Der Highrunner HR23 palettiert PET- und HDPE-Flaschen für Lebensmittelanwendungen.

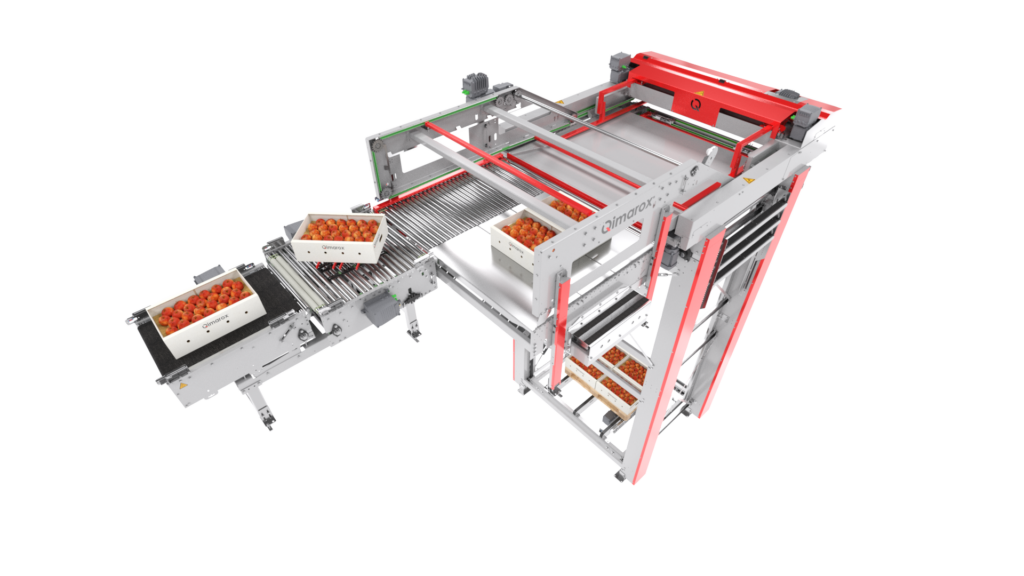

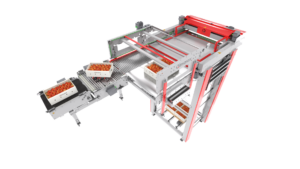

Highrunner HR23, for food production in PET / HDPE bottles.
Transform Your Production Today!
Investing in the Qimarox HR23 Palletizer will unlock significant operational improvements, cost savings, and a competitive advantage in Food Produce industry. For more information or to discuss your palletizing needs, feel free to reach out to us!
Why choose Qimarox?
Qimarox is a leading manufacturer of components for material handling systems. As a manufacturer of palletisers and product lifts, Qimarox distinguishes itself with a contemporary vision and approach. Innovation, quality and added value are of paramount importance.
Would you like to learn more, discuss your project, or receive a no‑obligation quotation?
If you would like more information about our palletizing solutions, you can request a sales enquiry without any obligations. If you have any other questions please feel free to contact us!
Together, we’ll create a solution that truly works for your organization.
The Highrunner HR23 can hanlde a large variaty of box sizes and layer patterns. Full specifications can be found below.
| Specifications | Min. | Max. |
| Infeed height at platform level (mm/inch) | 600 / 24 | 1,000 / 39 |
| Pallet height | ||
| Product (LxBxH mm/inch) | 150 x 125 x 120 / 6 x 5 x 4 | 600 x 400 x 400 / 24 x 16 x 16 |
| Layer (LxBxH mm/inch) | ||
| Throughput (products/hour) | 720 | 1,500 |
| Throughput(layers/hour) | 1 | 300 |
| Product weight (kg/lbs) | 2.5 / 5 | 25 / 55 |
| Layer weight (kg/lbs) | 1 / 1 | 180 / 400 |
The Highrunner HR23 is build in the most optimal configuration for the Food Produce industry.
- TwistRunner TRr3 with product measurement (patented product rotation)

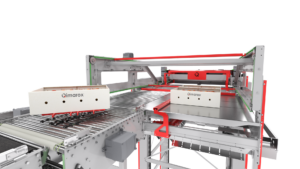

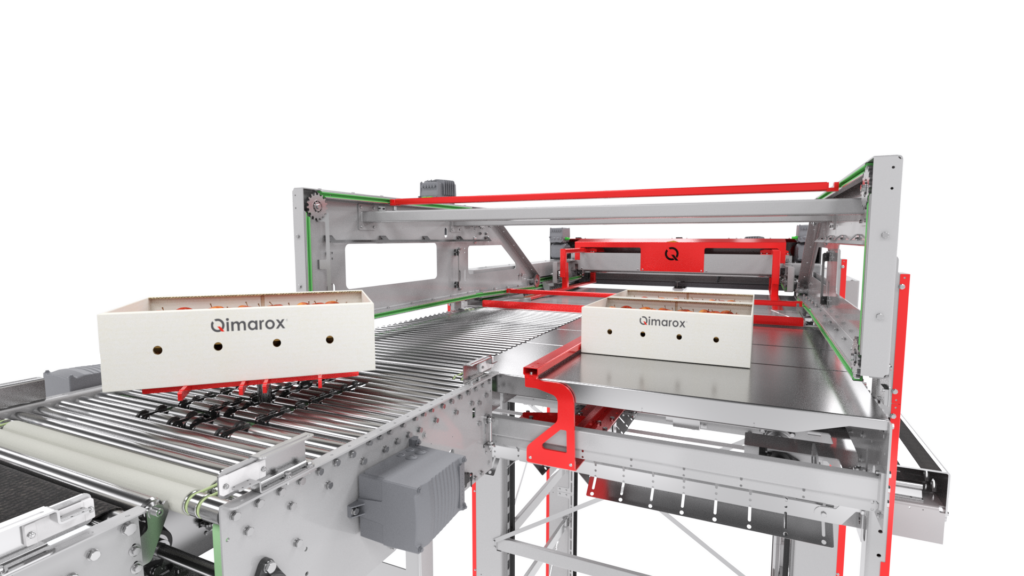

- Side infeed: infeed from the right or left next to the formation location

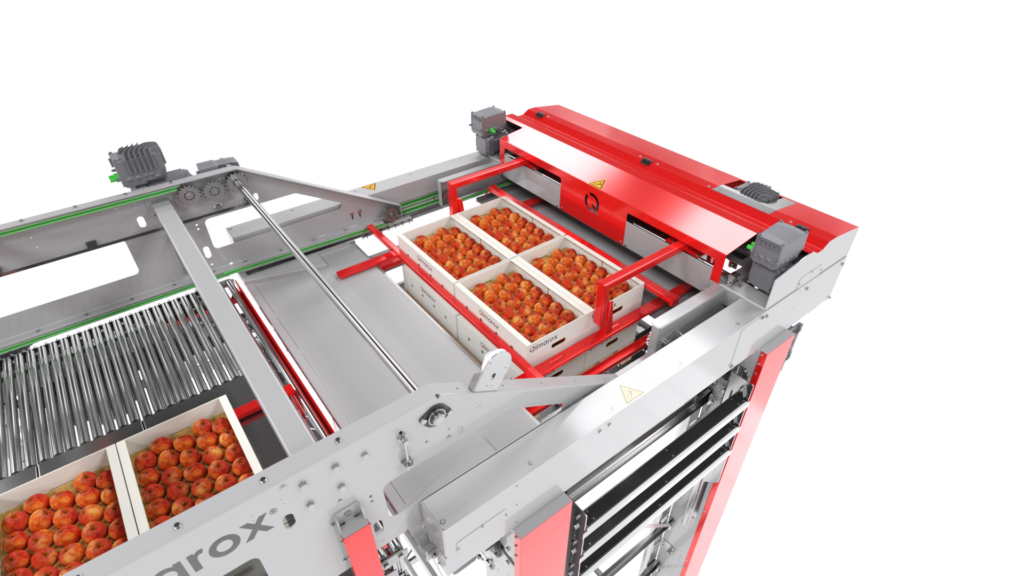

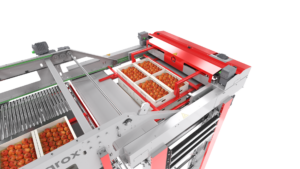

- Layer buffer with layer centering
- Bi-directional apron plate for straight outlined pallets

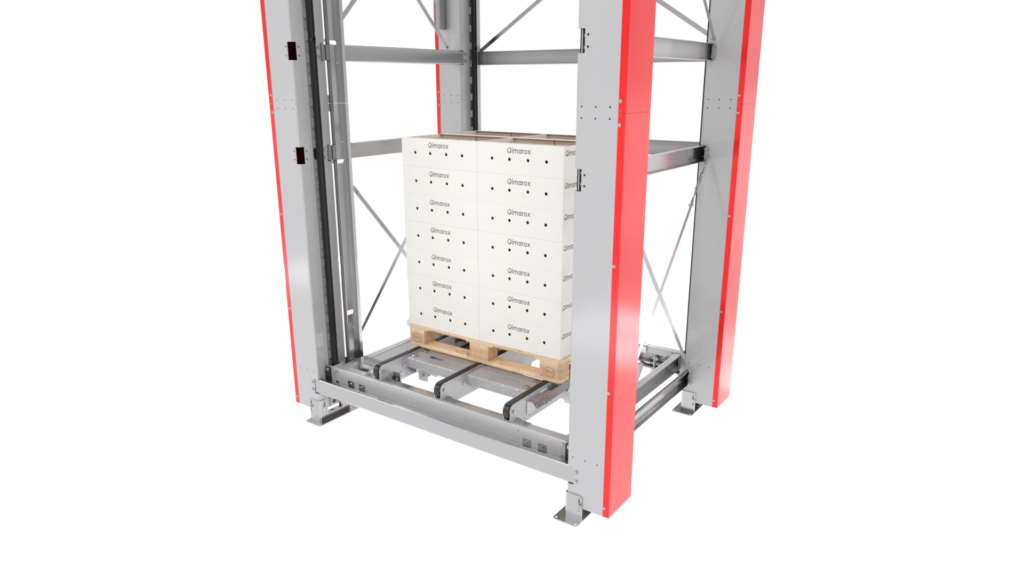

- Palletlift with pallet centering and alignment to ensure stable loaded pallet
Benefits of the Highrunner HR23
- Unique and patented method of pattern formation, where products are positioned on exact coordinates
- Smooth layer interlocking due to stacking restraints underneath stacking plates
- Prorunner PR10 pallet lift
- Built-in buffer for depositing products in layers
- User-friendly touchscreen operation (Pack ML)
- Freely programmable stacking patterns
- Solid construction with perfect finishing for tough jobs
- Easy access for service and maintenance
- Standard machine with commercially available components
